Position Measurement & Control - Issue 34

4-20 mA / 0-5 VDC / ±10 VDC / More DARPA Grand Challenge Teams Gain Unfair Advantage
Using A Calculator Is Not Cheating News You Can Use
Get Your Subscription! Past Issues

PRODUCT FOCUS

4-20 mA / 0-5 VDC / ±10 VDC / More

Miniature Draw Wire Transducer with FlexSignalTM Outputs Now Available

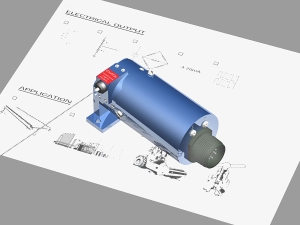

Figure A1 - Series 6 draw wire transducer with optional integrated signal conditioning.

Figure A1 - Series 6 draw wire transducer with optional integrated signal conditioning.

The Series 6 line of miniature draw wire transducers with FlexSignalTM electrical outputs is now shipping, meeting the diverse range of signal types required by industrial control, OEM, and factory automation users. With the ability to monitor up to 85 inches (2160 mm) of displacement and designed for NEMA 4X / IP 66 environments, the Series 6 draw wire transducers offer a choice of:

  • 4-20 mA (current loop)
  • low-level bridge (strain gage)
  • voltage conditioner (0-5 VDC, 0-10 VDC, ±5 VDC, ±10 VDC, and many more)
  • standard- and high-resolution digital (quadrature)
  • voltage divider

Users can save space, time, and money by using the integrated signal conditioning. The signal conditioner is located in the miniature transducer and eliminates wiring to specialized and expensive signal conditioning modules. The bridge, voltage conditioner, and 4-20 mA options cost less than 50% of standalone signal conditioning modules.

The voltage conditioner output is particularly flexible by allowing for 12 to 40 VDC input and providing user-settable outputs such as 0-5 VDC, 0-10 VDC, ±5 VDC, ±10 VDC, and many more. In addition, reverse polarity protection is provided along with a choice of increasing or decreasing signal output.

  1. 85-Inch (2159-mm) Maximum Travel (Model 62)
  2. Choice of FlexSignalTM Analog and Digital Output Signals (Factory Set)
  3. AccuTrakTM Threaded Drum For Enhanced Repeatability
  4. DirectConnectTM Sensor-To-Drum Technology = Zero Backlash, No Torsion Springs or Clutches
  5. NEMA 4 / IP 66 Environmental Protection
  6. Flexible Mounting Bases
  7. Industrial Operating Temperature Ranges

Figure A2 - Key Series 6 Features.

For more information:

CUSTOMER FOCUS

DARPA Grand Challenge Teams Gain Unfair Advantage

Numerous Teams Use SpaceAge Control Position Transducers

Figure B1 - Winding through the Mojave Desert from Barstow, California USA to Las Vegas, Nevada USA, the Grand Challenge course is full of surprises for driverless race vehicles.

Figure B1 - Winding through the Mojave Desert from Barstow, California USA to Las Vegas, Nevada USA, the Grand Challenge course is full of surprises for driverless race vehicles.

On 13 March 2004, the Grand Challenge will take place which is a race of autonomous ground vehicles between Los Angeles and Las Vegas. A cash award of $1 million will be granted to the team that fields the first vehicle to complete the designated route within a specified time limit.

Numerous Grand Challenge competitors will be using SpaceAge Control position transducers in a variety of roles ranging from suspension monitoring to steering and throttle control to stability feedback. To date, these teams have not been disqualified for obtaining an unfair advantage over the rest of the field.

Figure B2 -

Figure B2 - The Grand Challenge will take place 13 March 2004.

Figure B3 - One of the Grand Challenge vehicles during early development (photo courtesy of Team Cyberrider (http://www.cyberrider.org/).

Figure B3 - One of the Grand Challenge vehicles during early development (photo courtesy of Team Cyberrider (http://www.cyberrider.org/)).

To learn more about viewing the Grand Challenge, visit http://www.darpa.mil/grandchallenge/spectators.htm.

APPLICATION CORNER

Using A Calculator Is Not Cheating

In school, teachers may have told you that using a calculator is cheating. This is not the case for SpaceAge Control position transducers. You may find the calculators below to be of benefit during your position transducer specification, use, and calibration activities.

You may also want to bookmark the main Calculators page for future reference: http://spaceagecontrol.com/calcmain.htm.

NEWS YOU CAN USE

Previous Issue (Issue 33)
  • 737-800 Flight Simulator Feedback Sensing
  • Displacement Sensors Measure Mars Exploration Rover Airbag Performance
  • Adapting Displacement Sensors to Harsh Environments
  • Latest Poll: What lifetime requirement do you have for your displacement sensors?
